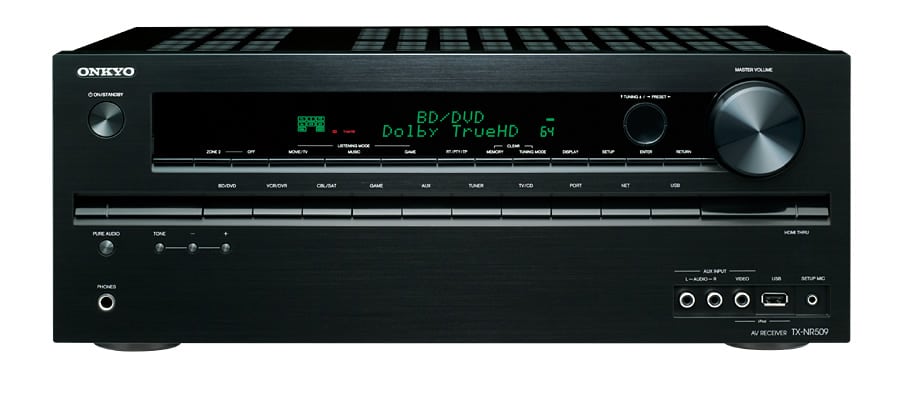

Onkyo TX-NR509 AV Receiver

ADVANCED FEATURES
HDMI® Support for 3D, Audio Return Channel, Deep Color™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Supports Onkyo Remote App for Control of A/V Receiver via iPod/iPhone* and Android Phone*2
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
Overlaid On-Screen Display (OSD) via HDMI
Audyssey 2EQ® for Room Acoustic Correction
Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)
Internet Radio Connectivity Through vTuner
Certified with Windows® 7 and DLNA Version 1.5
Firmware Updates via Ethernet and USB
Zone 2 Line-Out for Distributed Audio Playback in Another Room
*Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.)
*2 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
PROCESSING FEATURES
TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Advanced Music Optimizer for Compressed Digital Music Files
Mass Storage Class USB Memory Playback Capability
Theater-Dimensional Virtual Surround Function
CinemaFILTER™
Direct Mode
Pure Audio Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory

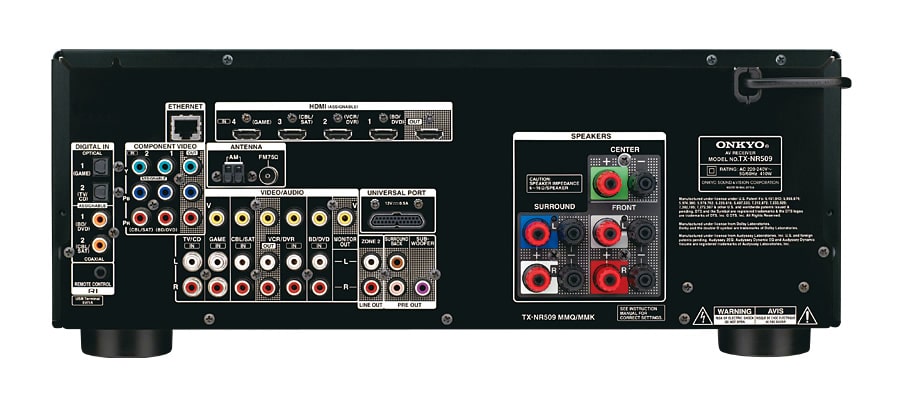

CONNECTION FEATURES
4 HDMI Inputs and 1 Output
Universal Port for UP-A1 Dock for iPod/iPhone
HDTV-Capable (720p/1080i) Component Video Switching (2 Inputs and 1 Output)
5 Composite Video Inputs (1 Front/4 Rear) and 2 Outputs
4 Digital Audio Inputs (2 Optical and 2 Coaxial)
6 Analog Audio Inputs (1 Front/5 Rear) and 1 Output
Subwoofer and Surround Back Pre Outs
Color-Coded, Banana Plug-Compatible Speaker Posts
Headphone Jack
OTHER FEATURES
Audyssey Dynamic EQ® for Loudness Correction
Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range
Crossover Adjustment (40 ⁄ 50 ⁄ 60 ⁄ 70 ⁄ 80 ⁄ 90 ⁄ 100 ⁄ 120 ⁄ 150 ⁄ 200 Hz)
A/V Sync Control (Up to 400 ms at 48 kHz)
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
RIHD (Remote Interactive over HDMI) for System Control
Full-Function RI (Remote Interactive) Remote Control
GENERAL SPECIFICATIONS
160 W/Ch at 6 Ohms, 1 kHz, 1 Channel Driven, JEITA;
130 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, IEC;
80 W/Ch at 8 Ohms, 20 Hz−20 kHz, 0.7%, 2 Channels Driven, FTC
Frequency Response: 20 Hz–50 kHz/+1 dB, -3 dB (DSP bypass)
WHD: 435 x 173.5 x 328 mm
Weight: 9.3 kg
